FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy

Name: FOIF Survey Instrument RTS010A Robotic Total Station 1Angle Accuracy
Brand: FOIF
Price: 1 USD

FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy Manufactures

Brand Name : FOIF

Model Number : RTS010A

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Delivery Time : 5~8 working days

Packaging Details : Box Carton

Angle Accuracy : 1''

Dectecing Method : Four Probe

Reflectorless Range : 1000m

Reflective Sheet Range : 1200m

Single Prism Range : 6000m

Time for Fine Mode : less than 0.7s

Magnification : 30X

Image : Erect

Shortest Focus Distance : 1.0m

Display Size : 3.5 inch

Color Display : YES

Dual Display Screen : YES

Resolution of Display : 320*240

Compensatory Type : Dual axis

Laser Plummet : YES

ART Working Range : 1000m

Positioning Time : 3~4s

Battery : 7.4v 5.8ah lithium

Operating Time : 5~8 hours

Software : WINCE7.0

USB : YES

Bluetooth : YES

Dustproof and Waterproof Grade : IP55

RS232 : YES

Connectors : Standard USB/mini USB/RS-232C/Bluetoooth long range

Auto Leveling : No

LED Indicators : No

Guide Light : YES

Contact Now

FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy
Item Introduction
RTS010A(1" angle accuracy) is our first generation of robotic total station adopting gear motor drive technique to realize ATR function. It supports one man survey with FOIF Inspire android app.
RTS010A adopts up-to-date automatic target recognition and positioning technology, achieves the accuracy of 1″(angle measurement ) and 1mm+1ppm(distance measurement in prism mode), supports SDK and external control protocol for software developing and can be applied for high precision surveying areas, such as rail traffic monitoring, dam monitoring.

Applications:
Bridge Engineering Construction
Tunnel Construction
Emergency and Fire Protection Service
Water Conservancy Facilities Construction
Inspection of Building Facilities
Three-dimensional Industrial Measurement
Deformation Survey of Foundation Pit
Ship Building Survey

Highlights:
High grade accuracy
Angle measurement accuracy: ± 1", distance measurement accuracy: 1mm+1ppm(Prism)
Long reflectorless range
1000m long range reflectorless distance measurement.
Modern technology adopted
Vertical shafting: dense ball bearing and four detectors design; Horizantal shafting: unitary and four detectors design
Latest ATR technology
Adopts up-to-date automatic target recognition and positioning technology
Third party softwares supported
Supports SDK and external control protocol for software developing
Updated operating system and on-board softwares
Windows CE 7.0 operating system, onboard software: FOIF Survey,FOIF Fieldgenius or Carlson SurvCE
Monitoring-grade instrument
Applied for high precision surveying areas, such as rail traffic monitoring, dam monitoring

Specifications

RTS010A Robotic Total Station
Brand	FOIF
Model	RTS010A
Angular Measurement
Angle Measurement Accuracy	1’’
Measuring Method	Absolute Encoder
Detecting Method	Four-probe
Min. Display	0.1"
Distance Measurement
Reflectorless Range	1000m
Reflective Sheet Range	1200m
Single Prism Range	6000m
Reflectorless Accuracy	3mm＋2ppm
Reflective Sheet Accuracy	2mm＋2ppm
Single Prism Accuracy	1mm＋1ppm
Time for Fine Mode	＜0.7s
Telescope
Magnification	30X
Image	Erect
Resolution	3”
Field of View	1°30’
Shortest Focus Distance	1.0m
General
Display and Keyboard	3.5-inch; Resolution 320 x 240;Color; Touchscreen; Double Displays; Backlight Illumination+Auto Sensitivity
Compensator	Type: Dual-axis Range: ≥±3′
Level Vial	Plate level:30″/2mm Circular level:8′/2mm
Laser Plummet	Type:635nm semiconductor laser Accuracy:±1mm/1.5m Spot:≤2.5mm/0.5~2m
ATR	Working range:5～1000m Positioning accuracy:±1.5mm(≤200m); ±1.5 " (>200m) Positioning time(in the field of view of telescope):3-4S
Endless Drive	1 horizontal, 1 vertical
Power	Battery: 7.4V 5.8Ah lithium battery Operating Time: 5~8 hours
Software System	OS: WINCE7.0
Data Interfaces/Communication	Support U disk, RS232C, USB, Bluetooth
Dustproof and waterproof grade	IP55(IEC60529)
Working Temperature	-20℃ ～+50℃
Storage Temperature	-40℃ ～+60℃

FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy

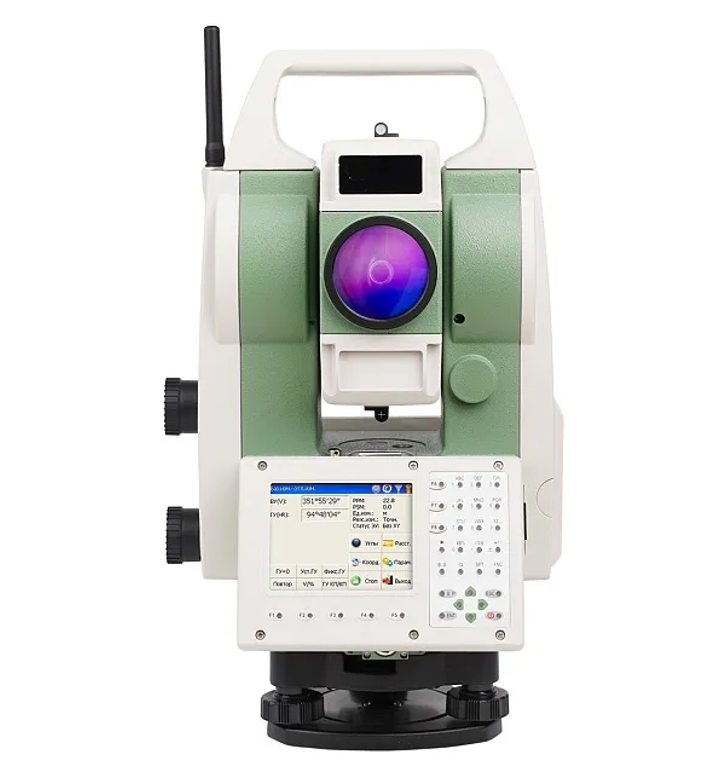

FOIF Survey Instrument RTS010A Robotic Total Station 1‘’Angle Accuracy Images
